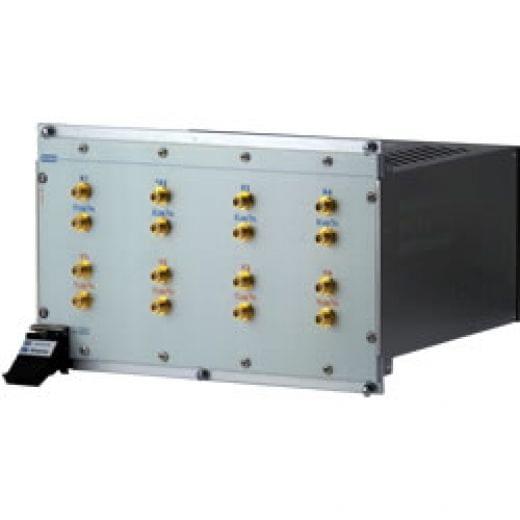

4x3 20GHz,50Ohm,SMA,PXI Microwave Matrix,Loop-Thru,40-787-528-4X3-L

The 40-787 Microwave BRIC platform is designed to provide a solution for complex RF matrix applications. Using a common mechanical platform the module can be constructed to provide scaleable non-blocking or blocking microwave matrix for frequencies to at least 20GHz. The standard configurations provide up to a 4x4 matrix. More complex matrix can be constructed by adding further switching functions and other devices inside the module. The matrix is available with optional terminated inputs to avoid the creation of standing waves on unconnected input cables. A Loop Thru option allows the matrix size to be expanded by combining a number of modules with additional cables, enabling 8x4 or even 8x8 matrix to be constructed.

Features
  • Platform For Microwave Matrix and Switching Applications
  • Standard Configurations Up To 4x4 Non-Blocking Matrix
  • Options For Built-In Termination and Loop-Thru
  • High Quality Relays Ensure Low loss and VSWR
  • Repeatable and Path Independent Insertion Loss
  • Occupies 10 Mechanical Slots of a 3U Chassis
  • Single Electrical Slot Ideal For Use In Smaller Chassis
  • Customized Version With Additional Switch Components and Matrix Size Available
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 50
X Size 4
Y Size 3
Max f (MHz) 20000
Function Matrix
Banks 1
Brand Pickering Interfaces
