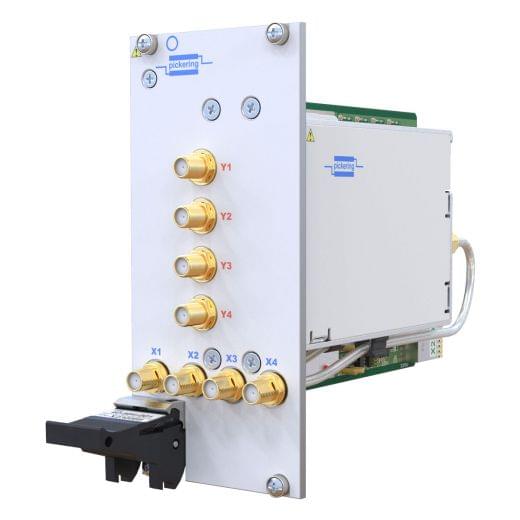

4x4 8GHz,50Ohm,SMA,Terminated,PXI RF Matrix,40-884A-001

The 40-884-001 is a 4x4 solid state RF matrix with a bandwidth of 8GHz and can handle power to +30dBm. The matrix supports up 4 point to point connections across the matrix at the same time.

An innovative construction method ensures the 40-884 provides a compact 3 slot solution which has excellent RF performance. A 4x4 matrix aids the concurrent testing of up to 4 devices with 4 different sets of test equipment, improving speed of test in RF systems and making more efficient use of expensive test equipment.

Features
  • Wide Frequency Range 10MHz to 8GHz
  • High Performance Solid State Switch
  • Automatic Termination
  • +30dBm Input Power Handling
  • Excellent Crosstalk and Isolation
  • Compact 3 Slot Form factor
  • Fast Operating Speed
  • Long Service Life
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 50
X Size 4
Y Size 4
Max f (MHz) 8000
Function Matrix
Banks 1
Brand Pickering Interfaces
