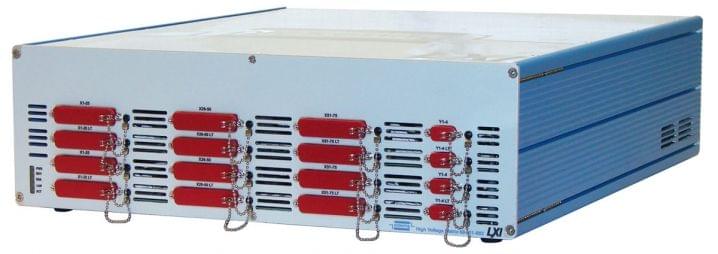

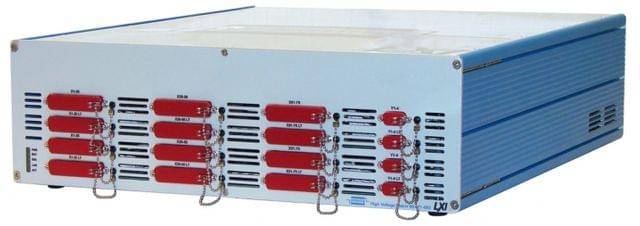

LXI Single 75x4 2-Pole HV Matrix - 60-311-001

The 60-311 is a 2-pole Matrix Module available with one, two or three separate 75x4 matrices housed in the same case. It is capable of cold switching 750VDC continuous with a carry current of 2A plus higher pulse conditions e.g. typically 1000VDC for 1s with low duty cycle or 6A for 200us with <1% Duty Cycle. Front panel Loop-Thru connections allow a 75x4 matrix to be easily expanded to an adjacent matrix in the same case. Also, expansion can be carried out between 60-311 matrices in separate cases.

Features
  • 2-Pole 75x4 Matrix Available In Single, Dual and Triple Versions
  • Cold Switch Voltage Rating of 750VDC Continuous & Higher Voltage Pulse Conditions e.g. Typically 1000VDC For 2ms With Low Duty Cycle
  • Maximum Current of 1A Switch/2A Carry
  • X & Y Loop-Thru Connections Allow Easy Matrix Expansion
  • X & Y Isolation Switching For Maximized Performance
  • High-Quality Electromechanical Relays
  • 3U Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant
  • IVI and Direct I/O Drivers
Platform LXI
Switch Type EMR
X Size 75
Y Size 4
Banks 1
Poles 2
Max I (A) 2
Max V DC 750
Brand Pickering Interfaces
