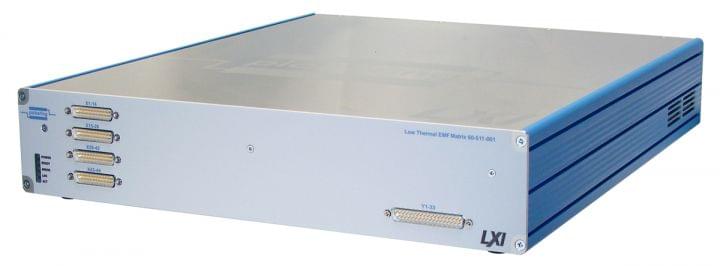

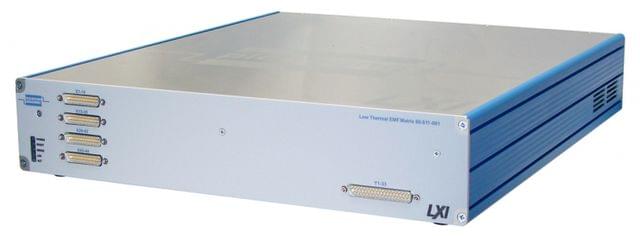

LXI 56x33 EMR Low Thermal EMF Matrix - 60-511-001

This high density 1-pole matrix has excellent thermal stability and substantially reduced thermal EMF figures when compared to a conventional switching matrix. Typical applications include Signal routing in ATE Selecting thermocouple inputs Switching amplifier gain circuits High accuracy DC microvolt measurements. These modules are fully programmable via the LAN interface using our generic switch driver. Industry standard (W3C) web browsers can be used to access and change configuration information and provide access to the soft front panels. Ideal for applications where a simple start-up process is required and for applications requiring control over large distances.

  • Available sizes in this range: 56x33, 42x33, 28x33 & 14x33
  • Low thermal offset
  • Excellent low level switching characteristics
  • Uses high quality electro-mechanical relays
  • Switch up to 200VDC/170VAC With 60W max power
  • Maximum switch current of 1A
  • 2U rack mountable enclosure
  • LXI Standard 1.4 compliant
  • IVI and Direct I/O drivers
  • Supported by eBIRST Switching System Test Tools
Platform LXI
Switch Type EMR
X Size 56
Y Size 33
Banks 1
Poles 1
Max I (A) 1
Max V DC 200
Brand Pickering Interfaces
