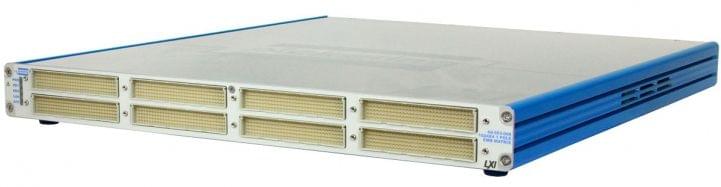

LXI 1024x4, 2A High-density Matrix - 60-553-008

These high-density single pole LXI matrix modules are capable of switching up to 150VDC/100VAC, or 2A (60W max). The use of high-quality electro-mechanical relays offer high switching confidence and make it suitable for signal routing in large ATE systems.

These matrix modules are constructed from 128x4 sub-assemblies, permitting the matrix to be supplied in a variety of sizes from 256x4 to 1024x4. Larger sizes can be easily achieved by linking multiple units together, for instance, two 1024x4 units can be linked to create a 2048x4 matrix.

Features
  • Up to 4096 Crosspoints
  • Dual Analog Bus
  • Matrix size 256x4 to 1024x4
  • Up to 1027 Simultaneously Closed Crosspoints
  • Uses High-Quality Electro-Mechanical Relays
  • Switch up to 150VDC/100VAC and up to 60W Max Power
  • Maximum Switch Current of 2A
  • 1U Rack Mountable Enclosure
  • LXI Standard 1.4 Compliant with Gigabit Ethernet Interface
  • IVI and Direct I/O Drivers
  • Supported by our Diagnostic Test Tools
Platform LXI
Switch Type EMR
X Size 1024
Y Size 4
Banks 1
Poles 1
Max I (A) 2
Max V DC 150
Brand Pickering Interfaces
