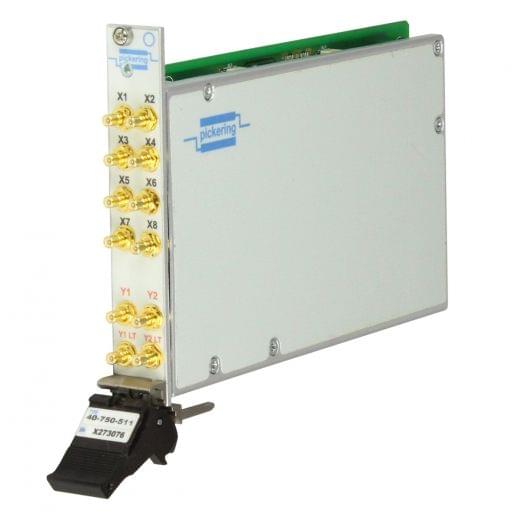

8x2 1.5GHz,50Ohm,SMB,PXI RF Matrix,40-750-511

The 40-750 is an 8x2 RF Matrix Module suitable for switching frequencies up to 1500MHz. It has a 50Ohm characteristic impedance with front panel mounted SMA or SMB coaxial connectors. The matrix intended for the easy construction of high performance bidirectional switching systems.

Features
  • 8x2 RF Coaxial Matrix
  • 1.5GHz Bandwidth
  • 50Ohm Characteristic Impedance
  • Built-In Y-Axis Loop Thru Simplifies the Construction of Larger RF Matrices
  • High Density SMA or SMB Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Switch Type RF Switch
Platform PXI
Z (Ohm) 50
X Size 8
Y Size 2
Max f (MHz) 1500
Function Matrix
Banks 1
Brand Pickering Interfaces
