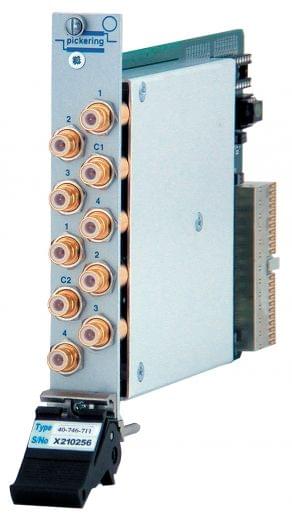

40-740, 40-745 and 40-746 RF Multiplexers are a range of Bi-Directional Multiplexers with bandwidth up to 2000MHz. They are arranged as Single 8 to 1, Dual 4 to 1 or Single 4 to 1 configurations, all with excellent Insertion Loss, VSWR and Isolation, in 50 Ohm or 75 Ohm versions with a wide choice of connectors. Applications include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching (from 2MBit/s to 155MBit/S),video/audio switching and switching high frequency logic signals.

Features
  • RF Multiplexer with 2GHz up to Bandwidth
  • 50 Ohm and 75 Ohm Versions Available
  • Available as Single 8 to 1, Single 4 to 1 or Dual 4 to 1
  • Single 4 to 1 Version Available With Automatic Termination of Non-Selected Channels
  • Choice of Front Panel Mounted Coaxial Connectors
  • 75 Ohm Version Suitable for Telecoms and High Quality Video Switching
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 75
Switch Type EMR
Banks 2
Poles 1
Frequency Range DC - 2GHz
Channels 4
Function Multiplexer
Brand Pickering Interfaces
