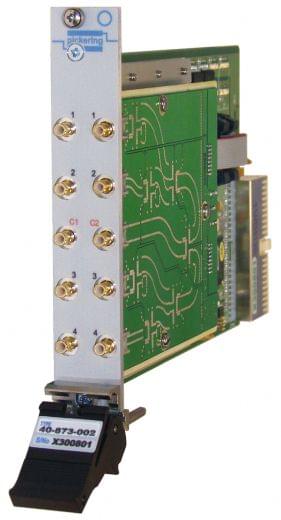

Dual 4 to 1,3GHz,50Ohm,PXI RF Multiplexer,MCX Terminated, 40-873-102

The 40-873 is a 4 to 1 RF MUX available with 1 or 2 banks in a single PXI slot. Additionally, extra switching allows unused channels to be terminated into 50 Ohm, maintaining signal integrity. All versions have been designed to exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. Each MUX has been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz.

Features
  • Terminated 3GHz RF Multiplexer
  • Single and Dual Versions
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type EMR
Banks 2
Poles 1
Frequency Range DC - 3GHz
Channels 4
Function Multiplexer
Brand Pickering Interfaces
