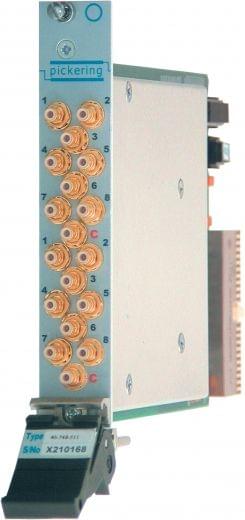

Dual 8 to 1,1GHz,75Ohm,PXI Multiplexer,1.0/2.3, 40-748-731
The 40-748 is a dual 8 to 1 RF MUX available in 50 Ohm or 75 Ohm versions occupying a single PXI slot. The module is available with SMB or SMA connectors for 50 Ohm versions or, 1.0/2.3 or Mini SMB connectors for 75 Ohm versions. Applications for the 40-748 include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching, video/audio switching and switching high frequency logic signals.
|Frequency Range||DC - 1GHz|
