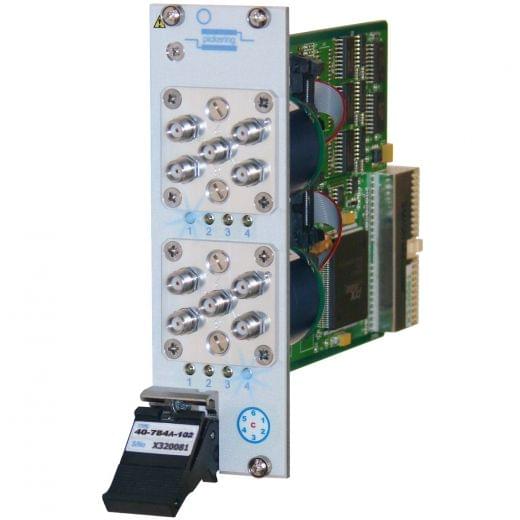

Dual SP4T,40GHz,50Ohm,PXI Multiplexer,SMA-2.9, 40-784A-142

Pickering Interfaces range of 40-784A PXI Microwave Multiplexer Modules have a characteristic impedance of 50Ohm and are capable of switching signals up to 40GHz. Available in single, dual or triple, SP6T or SP4T formats, they are suitable for constructing complex microwave switching networks and provide a range of switching configurations to suit most applications. Connection is by high performance front panel mounted SMA or SMA-2.9 connectors

  • Single, Dual or Triple Subminiature SP6T and SP4T Multiplexers
  • 6GHz, 18GHz, 26.5GHz and 40GHz Bandwidths
  • Excellent RF and Repeatability Characteristics
  • Extended Life For 6GHz/18GHz/26.5GHz Models - 10 Million Operations Guaranteed and Typically 25 Million Operations
  • Faster Operate Time Than Conventional Microwave Solutions
  • LED Indication
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type Microwave Multiplexer
Z (Ohm) 50
Switch Type Microwave Switch
Banks 2
Poles 1
Frequency Range DC - 40GHz
Channels 1
Function Multiplexer
Brand Pickering Interfaces
