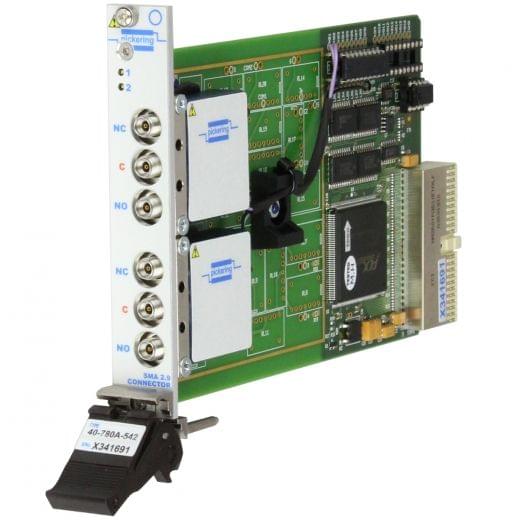

Dual,SPDT,DC-67GHz,50Ohm,SMA-1.85, PXI Microwave Relay,Relay, 40-780A-572

The 40-780A-572 is a dual SPDT 67GHz PXI microwave module and is part of a range that gives you the highest RF & microwave switching performance available. Applications are mainly in the microwave region, however there are many uses in the RF spectrum where extremely low insertion loss and ultra high isolation are critical, they may also be used for lower frequency RF applications where power handling to 240W is required (700W for N-Type options).

Features
  • 1, 2, 3 or 4 SPDT Relays per Module
  • 12.4GHz, 18GHz, 26.5GHz, 40GHz, 50GHz & 67GHz Bandwidth in 50Ω
  • 2.5GHz Bandwidth in 75Ω
  • High Power N-Type Options
  • Tree networks may be constructed by inter-linking individual modules
  • LED Indication
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type EMR
Banks 2
Frequency range DC - 67GHz
Channels 2
Brand Pickering Interfaces
