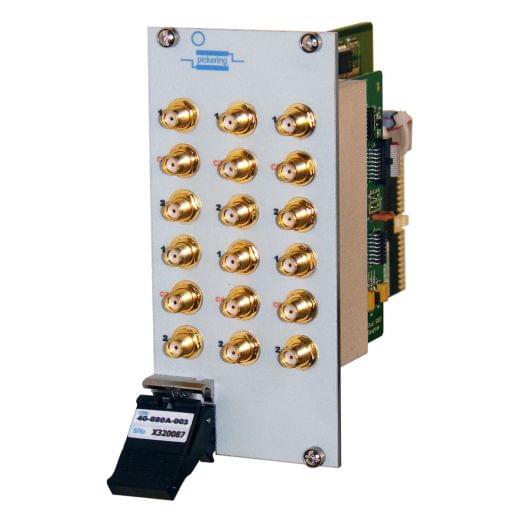

Hex,SPDT,10MHz-8GHz50Ohm,SMA, PXI RF Switch,Terminated, 40-880A-003
The 40-880A-003 is a hex SPDT 50 Ohm RF switch with 8GHz bandwidth. The 40-880A range of SPDT switches have automatic termination of unused signals and are available as a dual switch in a 1 slot PXI module, a quad switch in a two slot PXI module or hex and octal switches in three slot PXI modules. The switch exhibits low insertion loss and VSWR through the use of high performance solid state switches. Solid state switches ensure a long service life with no wear out mechanism, making it ideal for ATE systems requiring frequent and fast operating RF switching.
|Switch Type||Solid State|
|Frequency range||10MHz - 8GHz|
