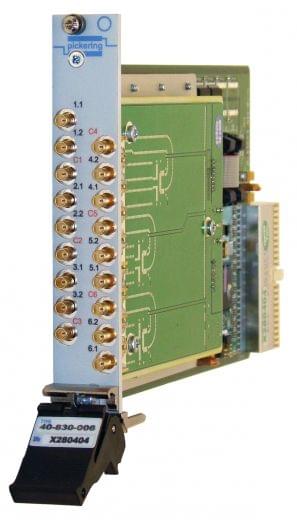

The 40-830 is a 75 Ohm RF Switch available with 3 or 6 separate SPDT relays in a single PXI slot. Both versions have been designed to exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. The switch banks have been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz with each path having a nominally equal insertion loss. The design of the 40-830 minimizes the injection of noise and unwanted signals into the signal path by careful attention to the mechanical and electrical design.

Features
  • 2.7GHz RF Single Pole Changeover Switch
  • Triple and Hex Versions
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 75
Switch Type EMR
Banks 1
Frequency range DC - 3GHz
Channels 3
Brand Pickering Interfaces
