LXI High Voltage Switching - 50xSPST Plugin Module

Overview

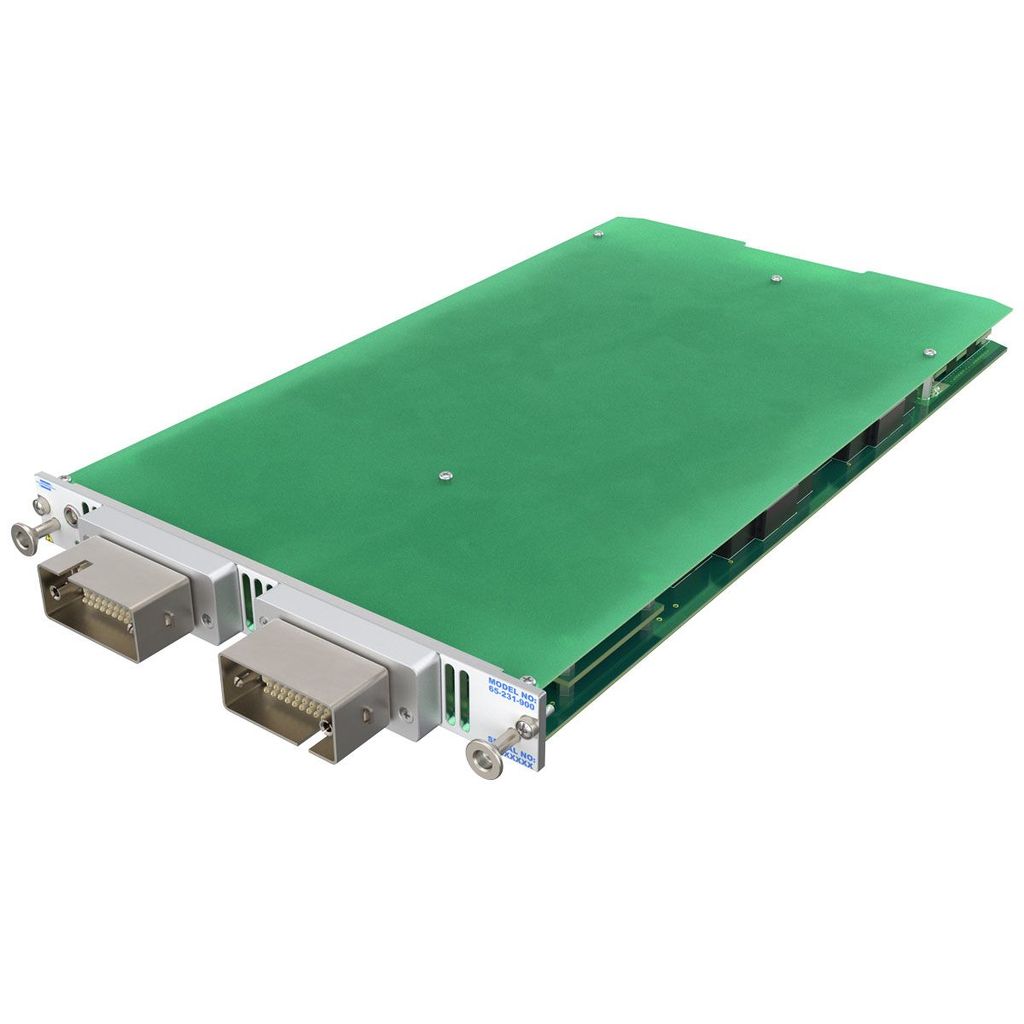

The 65-233-900-HI plug-in module is part of a scalable high voltage switch platform that provides a high voltage switching solution with capability up to 9 kV.

Switch arrays are created by populating the 65-200-002 scalable chassis with plug-in modules that provide access to the switches on 51-pin front panel connectors. Users can specify as many or as few plug-in modules as they require and can field upgrade the chassis to extend the number of switches.

A hardware interlock is provided on the front panel connector that prevents relay operation if a suitably wired mating connector is not fitted. This can, for example, be used to disable relay operation if the test system cabinet door is open.

The chassis supports up to 6 plug-in modules which are loaded into the chassis via the front panel, greatly improving flexibility and ease of maintenance.

Features
  • Modular Switch Design
  • Cold Switch up to 9 kVDC/9 kVAC Peak
  • Hot Switch up to 7.5 kVDC /7.5 kVAC Peak
  • 0.25 A Hot Switch Current
  • Maximum Power 50 W
  • Dry Reed Switch Contacts With RFI Suppression for Long Life
  • Hardware Interlock Provided
  • Built-in Scan List Sequence Stores with Triggering Capability
  • Fully Compliant to 1.5 LXI Standard
PlatformLXI
Switch TypeReed
Max I (A)0.25
Max V DC9000
Poles1
Relays50
Relay ContactsSPST
BrandPickering Interfaces
