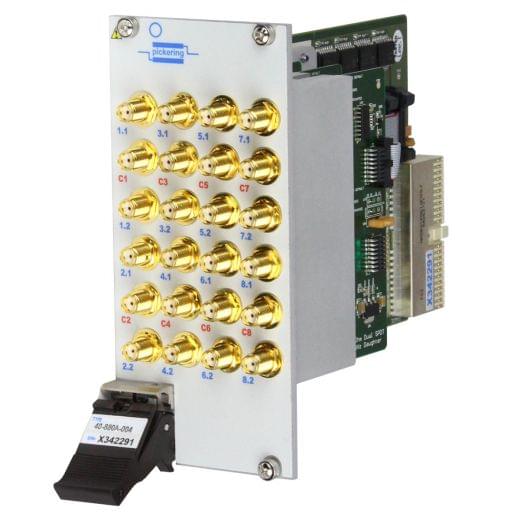

Octal,SPDT,10MHz-8GHz50Ohm,SMA, PXI RF Switch,Terminated, 40-880A-004

The 40-880A-004 is an octal SPDT 50 Ohm RF switch with 8GHz bandwidth. The 40-880A range of SPDT switches have automatic termination of unused signals and are available as a dual switch in a 1-slot PXI module, a quad switch in a 2-slot PXI module or hex and octal switches in 3-slot PXI modules. The switch exhibits low insertion loss and VSWR through the use of high performance solid state switches. Solid state switches ensure a long service life with no wear out mechanism, making it ideal for ATE systems requiring frequent and fast operating RF switching.

Features
  • Wide Frequency Range 10MHz to 8GHz
  • High Performance Solid State Switch
  • Dual, Quad, Hex and Octal Versions
  • Automatic Termination of Unused Channels
  • 36dBm Power Handling
  • Excellent Crosstalk & Isolation
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type Solid State
Banks 1
Frequency range 10MHz - 8GHz
Channels 8
Brand Pickering Interfaces
