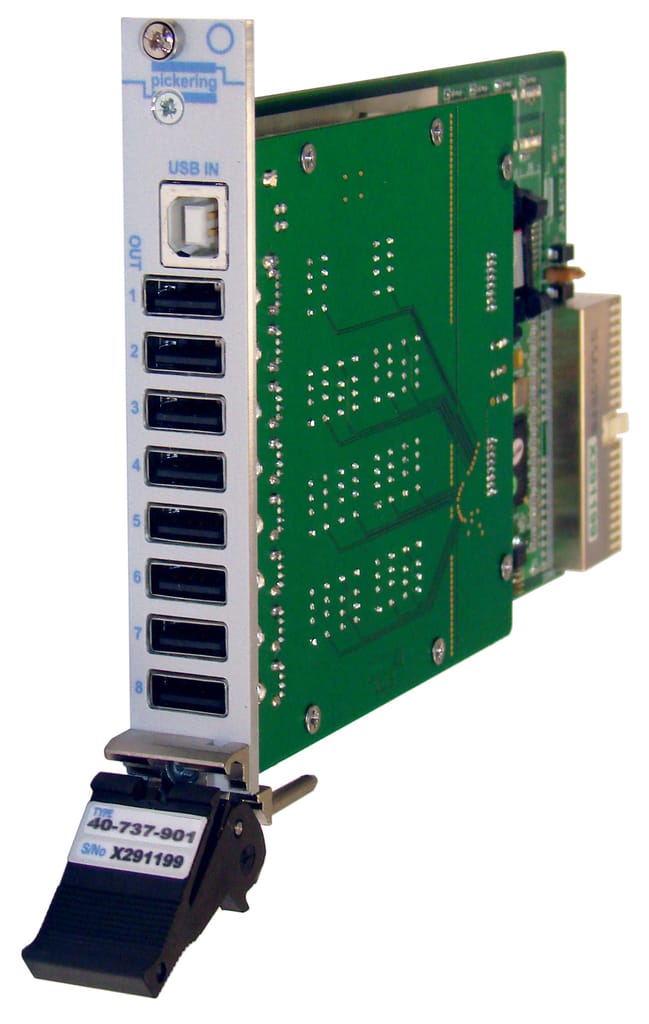

PXI 8-Channel USB Data Comms MUX-40-737-901

An 8:1 USB multiplexer for switching USB1 and USB2 data and power connections with USB connectors. The data signal paths are 2-pole arranged as differential pairs as defined by the USB standard. The signal pair has a controlled differential impedance and the multiplexer has been designed for minimum insertion loss. The USB power paths are arranged as a common negative and a switched positive. The power paths are designed to ensure minimum loss of the USB power.

Features
  • Multiplexer Designed for Switching USB Signals
  • Wide Differential Bandwidth
  • Controlled Differential Impedance
  • Suitable for USB1 and USB2 Data and Power Connections using a 78 way D-type Connector\
  • Interface Board Available For Converting 78 way Connector to 16 USB Type A and One USB Type B Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type EMR
Banks 1
Poles 2
Max I (A) 0.5
Max V DC 100
Channels 8
Brand Pickering Interfaces
