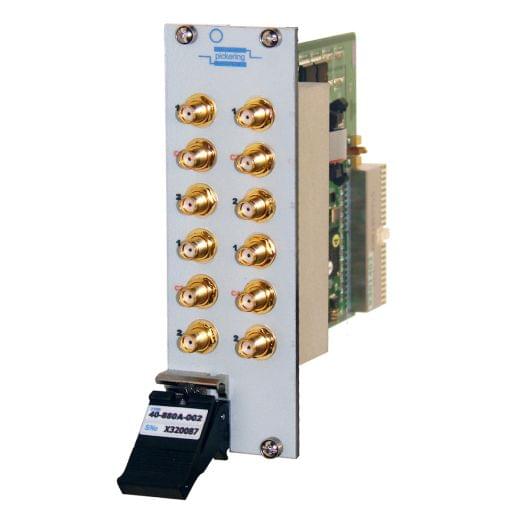

Quad,SPDT,10MHz-8GHz50Ohm,SMA, PXI RF Switch,Terminated, 40-880A-002

The 40-880A-002 is a quad SPDT 50 Ohm RF switch with 8GHz bandwidth. The 40-880A range of SPDT switches have automatic termination of unused signals and are available as a dual switch in a 1 slot PXI module, a quad switch in a two slot PXI module or hex and octal switches in three slot PXI modules. The switch exhibits low insertion loss and VSWR through the use of high performance solid state switches. Solid state switches ensure a long service life with no wear out mechanism, making it ideal for ATE systems requiring frequent and fast operating RF switching.

Features
  • Wide Frequency Range 10MHz to 8GHz
  • High Performance Solid State Switch
  • Dual, Quad, Hex and Octal Versions
  • Automatic Termination of Unused Channels
  • 36dBm Power Handling
  • Excellent Crosstalk & Isolation
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type Solid State
Banks 1
Frequency range 10MHz - 8GHz
Channels 4
Brand Pickering Interfaces
