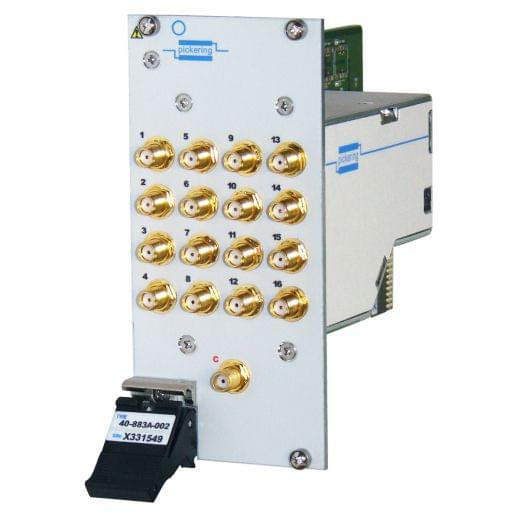

The 40-883A-002 is a single 16 to 1 50Ohm RF multiplexer with 8GHz bandwidth and automatic terminationof unused signal channels. It is available in 8 to 1 and 16 to 1 configurations in two and three PXI slots respectively. It exhibits low VSWR over the full operating frequency range and consistent and flat insertion loss characteristics. The use of solid state switches ensure a long service life with no wear out mechanism, making it ideal for ATE systems requiring frequent and fast operating RF switching. This RF Multiplexer can handle RF input powers of up to +36dBm and is able to sustain frequent hot switching without performance degradation.

Features
  • Wide Frequency Range 10MHz to 8GHz
  • High Perfomace Solid State Switch
  • 8 to 1 or 16 to 1 Multiplexer Versions
  • Automatic Termination of Unused MUX Channels
  • +36dBm Input Power Handling
  • Excellent Crosstalk & Isolation
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type Solid State
Banks 1
Poles 1
Frequency Range 10MHz - 8GHz
Channels 16
Function Multiplexer
Brand Pickering Interfaces
