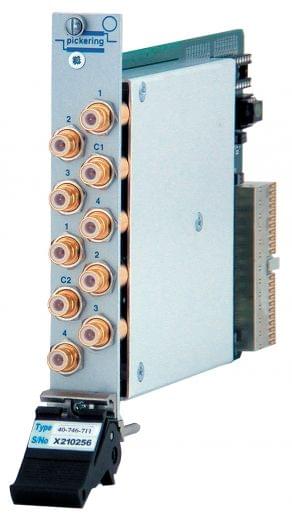

Single 4 to 1,2GHz,50Ohm,PXI RF Multiplexer,SMA, 40-745-521
40-740, 40-745 and 40-746 RF Multiplexers are a range of Bi-Directional Multiplexers with bandwidth up to 2000MHz. They are arranged as Single 8 to 1, Dual 4 to 1 or Single 4 to 1 configurations, all with excellent Insertion Loss, VSWR and Isolation, in 50 Ohm or 75 Ohm versions with a wide choice of connectors. Applications include routing high frequency signals to and from oscilloscopes, analyzers, signal generators and synthesizers, telecoms tributary switching (from 2MBit/s to 155MBit/S),video/audio switching and switching high frequency logic signals.
|Frequency Range||DC - 2GHz|
