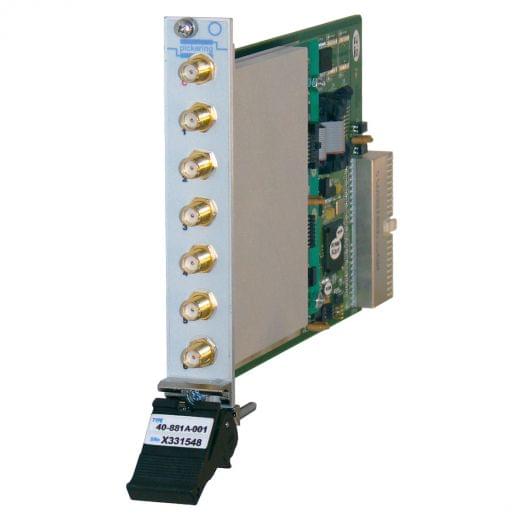

Single 6 to 1,8GHz,50Ohm,PXI RF Multiplexer,SMA,Terminated, 40-881A-001

The 40-881A-001 is a single 6 to 1 50Ohm RF multiplexer with 8GHz bandwidth and automatic termination of unused signal channels. It is available as a single or dual MUX in one and two PXI slots respectively. The 40-881A exhibits low VSWR characteristic over the full operating frequency range and consistent insertion loss characteristics. The use of solid state switches ensure a long service life with no wear out mechanism, making the module ideal for ATE systems requiring frequent and fast operating RF switching with no contact bounce.

  • Wide Frequency Range 10MHz to 8GHz
  • High Performance Solid State Switch
  • 6-Channel Multiplexer
  • Single and Dual Versions
  • Automatic Termination of Unused MUX Channels
  • +36dBm Input Power Handling
  • Escellent Crosstalk & Isolation
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type Solid State
Banks 1
Poles 1
Frequency Range 10MHz - 8GHz
Channels 6
Function Multiplexer
Brand Pickering Interfaces
