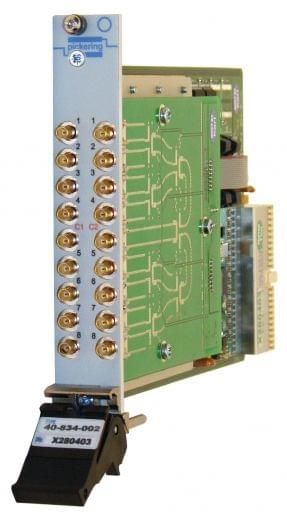

Single 8 to 1,3GHz,75Ohm,PXI RF Multiplexer,SMB, 40-834-001

The 40-834 is a 75 Ohm 8 to 1 RF MUX available with 1 or 2 banks in a single PXI slot. All versions have been designed to exhibit low insertion loss and VSWR through the use of modern RF relay technology at an affordable cost. Each MUX has been carefully designed to ensure excellent and repeatable RF characteristics to frequencies of 3GHz with each path having a nominally equal insertion loss. The design of the 40-834 minimizes the injection of noise and unwanted signals into the signal path by careful attention to the mechanical and electrical design.

Features
  • 3GHz RF Multiplexer
  • Single 16 Channel Multiplexer
  • SMB or MCX Connector Versions
  • High Performance, Low Cost
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 75
Switch Type EMR
Banks 1
Poles 1
Frequency Range DC - 3GHz
Channels 8
Function Multiplexer
Brand Pickering Interfaces
