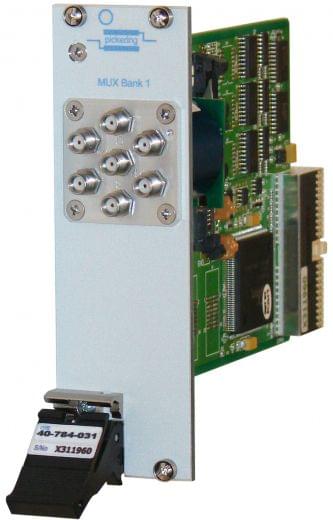

PXI Single SP6T Multiplexer 40GHz 50Ohm SMA-2.9

Pickering Interfaces range of 40-784A PXI Microwave Multiplexer Modules have a characteristic impedance of 50Ohm and are capable of switching signals up to 40GHz. Available in single, dual or triple, SP6T or SP4T formats, they are suitable for constructing complex microwave switching networks and provide a range of switching configurations to suit most applications. Connection is by high performance front panel mounted SMA or SMA-2.9 connectors

Features

Single, Dual or Triple Subminiature SP6T and SP4T Multiplexers
6GHz, 18GHz, 26.5GHz and 40GHz Bandwidths
Excellent RF and Repeatability Characteristics
Extended Life For 6GHz/18GHz/26.5GHz Models - 10 Million Operations Guaranteed and Typically 25 Million Operations
Faster Operate Time Than Conventional Microwave Solutions
LED Indication
VISA, IVI and Kernel Drivers Supplied for Windows
Supported by PXI or LXI Chassis

Platform	PXI
Type	Microwave Multiplexer
Z (Ohm)	50
Switch Type	Microwave Switch
Banks	1
Poles	1
Frequency Range	DC - 40GHz
Channels	1
Function	Multiplexer
Brand	Pickering Interfaces
