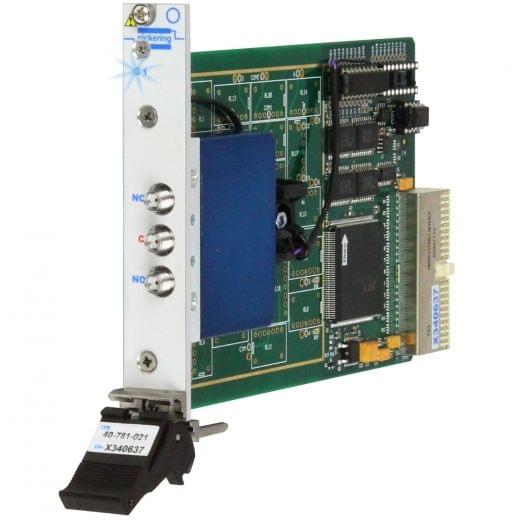

Single,SPDT,DC-18GHz,50Ohm,SMA PXI Microwave Relay,Internal Termination, 40-781-021

This single microwave SPDT relay module is part of the 40-781 range that consists of one or two changeover switches capable of switching frequencies to 18GHz in 50 Ohm. Versions are available with either internal or external terminations and connections are made via front panel mounted high quality SMA RF coaxial connectors.

Features
  • 1 or 2 Changeover Relays Per Module
  • Internal or External Termination
  • 50? Characteristic Impedance
  • 18GHz Bandwidth
  • LED Indication
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Function Relay
Z (Ohm) 50
Switch Type EMR
Banks 1
Frequency range DC - 18GHz
Channels 1
Brand Pickering Interfaces
