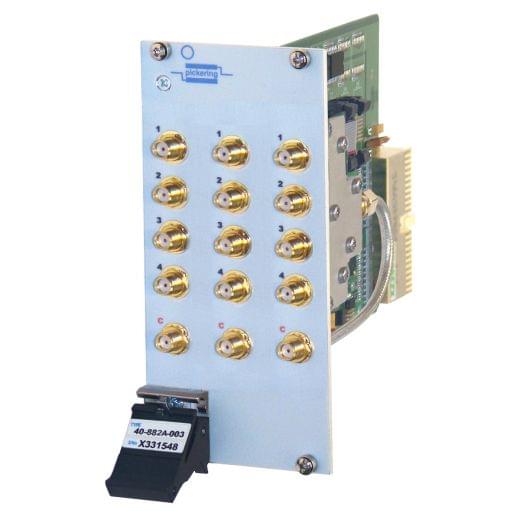

Triple 4 to 1,8GHz,50Ohm,PXI RF Multiplexer,SMA,Terminated, 40-882A-003

The 40-881A-003 is a triple 50Ohm 4 to 1 RF multiplexer with 8GHZ bandwidth.The 40-881A range of multiplexers have automatic termination of unused signals and are available as a single MUX in one PXI slot, a dual MUX in two PXI slots, or triple and quad MUXs in three slot PXI modules. This PXI multiplexer exhibits low VSWR characteristically over the full operating frequency range and consistent insertion loss characteristics. The use of solid state switches ensures a long service life with no wear out mechanism, making the 40-882 MUX ideal for ATE systems requiring frequent and fast operating RF switching.

  • Wide Frequency Range 10MHz to 8GHz
  • High Performance Solid State Switch
  • 4-Channel Multiplexer
  • Single, Dual, Triple and Quad Versions
  • Automatic Termination of Unused MUX Channels
  • +36dBm Input Power Handling
  • Escellent Crosstalk & Isolation
  • SMA Coaxial Connectors
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Type RF Multiplexer
Z (Ohm) 50
Switch Type Solid State
Banks 3
Poles 1
Frequency Range 10MHz - 8GHz
Channels 4
Function Multiplexer
Brand Pickering Interfaces
