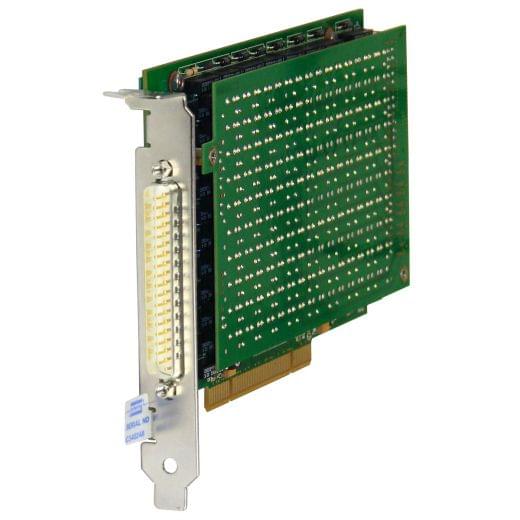

18Ch,2Ohm to 31.5Ohm PCI High Density Pecision Resistor Card, 50-298-010

The 50-298-010 is a high density programmable resistor card with 18 channels which can be set between 2? and 31.5? with 0.125? resolution The 50-298 range provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-298 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature.

Features
  • High Density Resistor Simulation
  • Fitted With Pickering Reed Relays, Providing Superior Speed of Operation & Card Life
  • Up To 18 Channels ion a Single Card
  • Resistance Resolution to 0.125 Ohm
  • Values From 2 Ohm to 22M Ohm
  • Accuracy of �0.2% �Resolution
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
Type Standard Resistor
Platform PCI
Resistance Range 2Ohm to 31.5Ohm
Accuracy (%) 0.2
Resolution (Ohm) 0.125
Channels 18
Brand Pickering Interfaces
