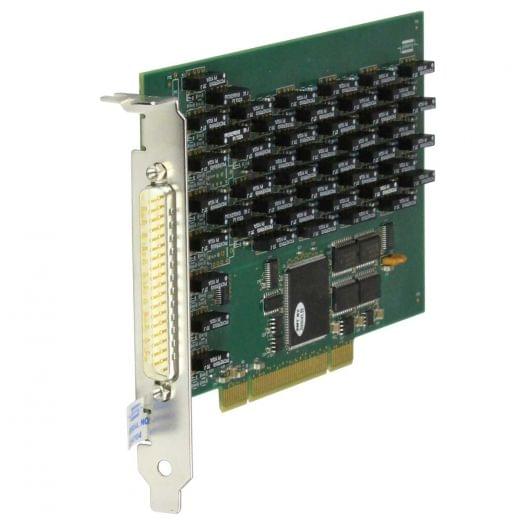

2Ch,2.5Ohm to 1.02kOhm PCI Programmable Resistor Card, 50-294-021
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 50-294 series of PCI Programmable Resistor cards are available with two channels of 16-bit, two channels of 12-bit or four channels of 8-bit resistor chains in a single card. These cards are ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 50-294 can also be supplied with 8xSPST Pickering reed relays. These uncommitted relays have a number of uses, including extending the resistor chain, adding additional fault conditions and providing the functionality of a resistor card and an uncommitted relay card in a single PCI slot. Associated calibration cable is available here: 40-975-037-02-1m >>
Type | Standard Resistor |
Platform | PCI |
Resistance Range | 2.5Ohm to 1.02kOhm |
Accuracy (%) | 1 |
Resolution (Ohm) | 0.25 |
Channels | 2 |
Brand | Pickering Interfaces |
