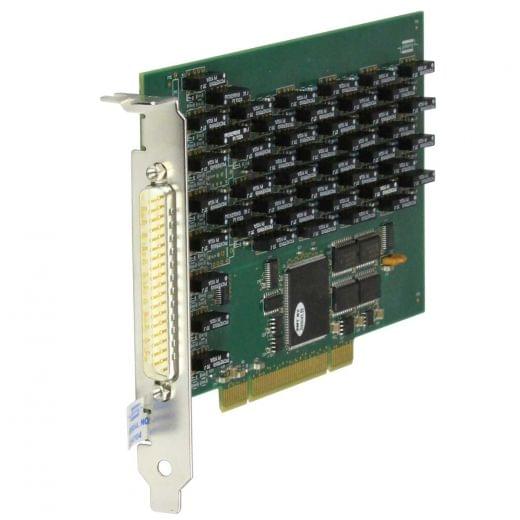

2Ch,3Ohm to 131kOhm PCI Programmable Resistor Card, 50-294-034

The 50-294 series of PCI Programmable Resistor cards are available with two channels of 16-bit, two channels of 12-bit or four channels of 8-bit resistor chains in a single card. These cards are ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 50-294 can also be supplied with 8xSPST Pickering reed relays. These uncommitted relays have a number of uses, including extending the resistor chain, adding additional fault conditions and providing the functionality of a resistor card and an uncommitted relay card in a single PCI slot. Associated calibration cable is available here: 40-975-037-02-1m >>

Features
  • Dual or Quad Resistor Card
  • Pickering Reed Relays, Providing Superior Speed of Operation and Module Life
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • Provides Fully Isolated Variable Resistors
  • VISA & Kernel Drivers Supplied for Windows XP/Vista/7/8 Plus Soft Front Panel
Type Standard Resistor
Platform PCI
Resistance Range 3Ohm to 131kOhm
Accuracy (%) 1
Resolution (Ohm) 2
Channels 2
Brand Pickering Interfaces
