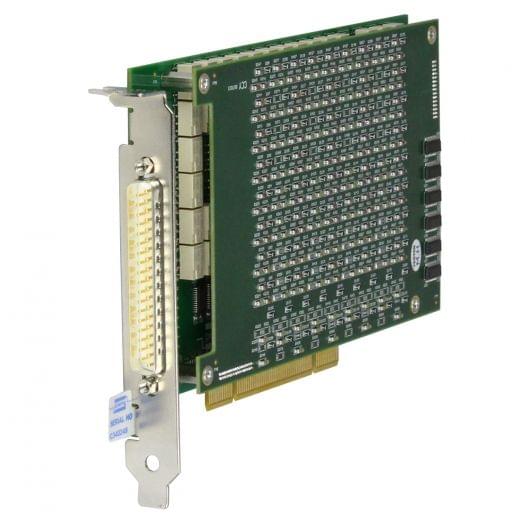

3Ch,3Ohm to 2.97MOhm PCI Precision Resistor Card, 50-297-151

The 50-297 provides a simple solution for applications requiring accurate simulation of resistive sensors. The 50-297 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature. The associated calibration cable for this product is available for purchase as 40-975-037-1m

Features
  • Dual or Quad Resistor Card
  • Pickering Reed Relays, Providing Superior Speed of Operation and Module Life
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • Provides Fully Isolated Variable Resistors
  • VISA & Kernel Drivers Supplied for Windows XP/Vista/7/8 Plus Soft Front Panel
Type Standard Resistor
Platform PCI
Resistance Range 3Ohm to 2.97MOhm
Accuracy (%) 0.2
Resolution (Ohm) 0.25
Channels 3
Brand Pickering Interfaces
