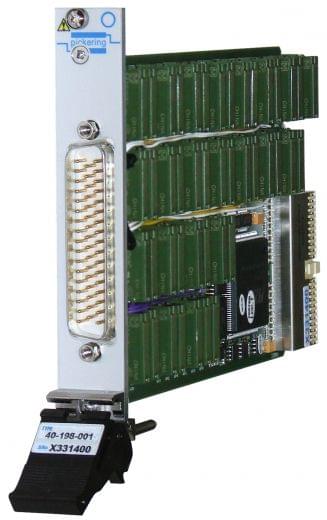

PXI 5A 20-Chan 1-Bus Fault Insertion Switch - 40-198-001

The 40-198 is a 20 Channel Fault Insertion switch, primarily designed for the simulation of fault conditions in automotive/avionics applications involving the reliability testing of safety critical controllers.

Features
  • 20 Fault Insertion Channels
  • Suitable For Automotive/Avionics ECU Burn-In/Endurance Applications
  • High Density Low Cost Solution
  • Simulation of Various Types of Electrical Fault, Enabling Rigorous Fault Testing
  • Choice of 1 or 2 Fault Insertion Buses
  • Fault Bus MUX for Selecting External Fault Conditions
  • 5A Hot or Cold Switching
  • Hot Switch up to 110VDC/250VAC & up to 150W/1250VA
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Fault Buses 1
Max I (A) 5
Max V DC 400
Channels 20
Brand Pickering Interfaces
