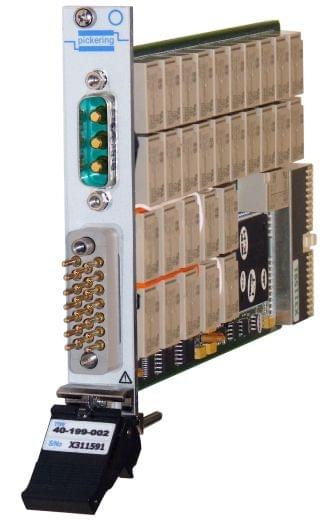

PXI 10A 10-Chan 2-Bus Fault Insertion Switch - 40-199-002

The 40-199 is a 10 Channel Fault Insertion switch designed for the simulation of fault conditions in automotive/avionics applications, involving the reliability testing of safety critical controllers. It is designed to be able to insert 3 different fault conditions between the test fixture and the equipment under test: Open-Circuit, Short-Circuit between UUT connections, Short-Circuit to other signals such as Power, Ignition & Ground via Fault Insertion Bus.

  • 10 Fault Insertion Channels
  • Suitable For Automotive/Avionics ECU Burn-In/Endurance Applications
  • High Quality Electro-Mechanical Relays
  • Simulation of Various Types of Electrical Fault, Enabling Rigorous Fault Testing
  • Choice of 1 or 2 Fault Insertion Buses
  • 10A Hot or Cold Switching and Up To 300W/2500VA Power
  • Hot Switch up to 125VDC or 250VAC
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Fault Buses 2
Max I (A) 10
Max V DC 400
Channels 10
Brand Pickering Interfaces
