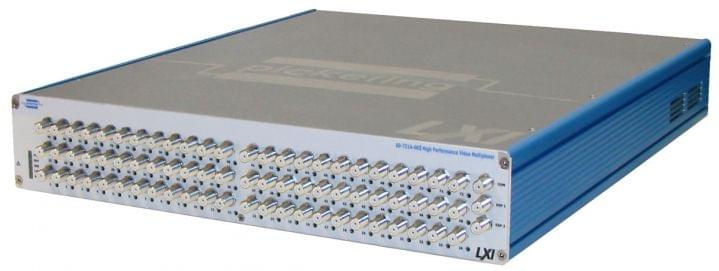

LXI 48-Channel 1GHz Video Multiplexer - 60-721A-002

The 60-721A High Performance Video MUX is designed for the switching of RF signals in 75 Ohm systems at frequencies up to 1GHz. It is ideal for 75 Ohm monitoring applications that require a multiplexer to select one channel to be routed to measuring equipment. The automatic connection of unused channels into 75 Ohm terminations helps maintain signal integrity and minimizes the possibility of introducing unwanted responses. The common connection is also automatically terminated into 75 Ohm when unused. Front panel LED indicators adjacent to each multiplexer input connector provide an easy visual identification of the active channel.

Features
  • High Performance RF Multiplexer Suitable For Video Switching Applications
  • 1GHz Bandwidth
  • Available in 24, 48, 72, 96, 120 or 144 Channel Versions
  • 75 Ohm Characteristic Impedance
  • Automatic Termination of Unused Inputs
  • Low Loss, High Isolation
  • LED Indicator on Every Channel
  • Consistent Performance Across All Channels
  • Simple Remote Control Via LXI Interface
  • LXI Standard 1.4 Compliant
Type Video Multiplexer
Platform LXI
Function Mux
Z (Ohm) 75
Banks 1
Max f (MHz) 1GHz
Channels 48
Brand Pickering Interfaces
