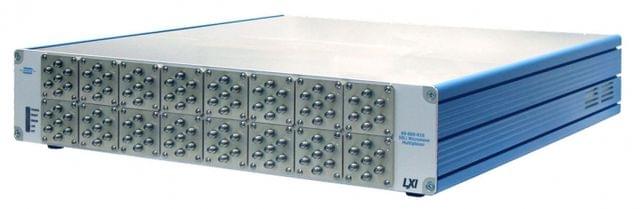

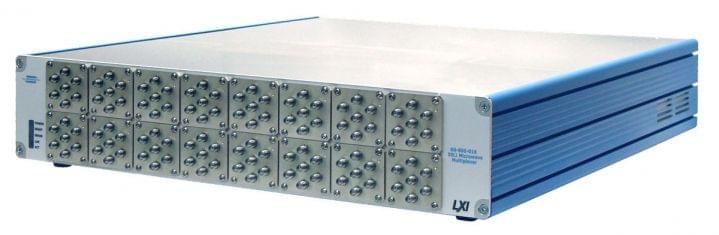

LXI 50Ohm Terminated 6:1 Microwave Multiplexer 4-bank 26.5GHz SMA - 60-800-304
VARIANT | SELLER | PRICE | QUANTITY |
---|
Our 60-800 Microwave Multiplexer range is suitable for switching 50 ohm signals up to 26.5GHz. With the capability of supporting up to 16 banks of 6 channel multiplexers it is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted SMA connectors. The Microwave Multiplexer is also available in terminated versions with up to 7 banks of 6 channel multiplexers. A 75 ohm version, the 60-820, is also available covering frequencies to 2.5GHz.
Type | Microwave Multiplexer |
Platform | LXI |
Function | Mux |
Z (Ohm) | 50 |
Banks | 4 |
Max f (MHz) | 26.5GHz |
Channels | 6 |
Brand | Pickering Interfaces |
