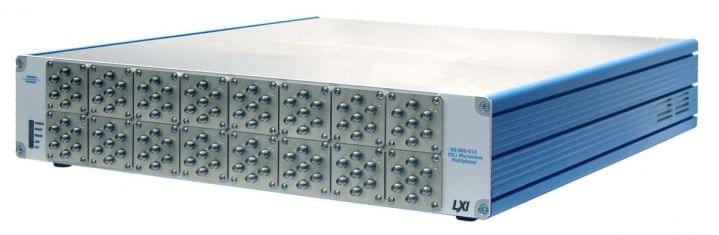

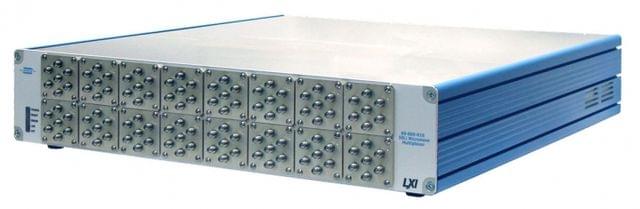

LXI 50Ohm 6:1 Microwave Multiplexer 16-bank 40GHz SMA - 60-800-416

Our 60-800 Microwave Multiplexer range is suitable for switching 50 ohm signals up to 40GHz. With the capability of supporting up to 16 banks of 6 channel multiplexers it is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted SMA connectors.

Features
  • High Performance 6-Channel RF Multiplexer
  • 40GHz Bandwidth
  • 16 Multiplexer Banks
  • 50 Ohm Characteristic Impedance
  • Low Loss, High Isolation
  • Compact 3U Form Factor
  • LXI Standard 1.4 Compliant
  • IVI & Direct I/O Drivers
Type Microwave Multiplexer
Platform LXI
Function Mux
Z (Ohm) 50
Banks 16
Max f (MHz) 40GHz
Channels 6
Brand Pickering Interfaces
