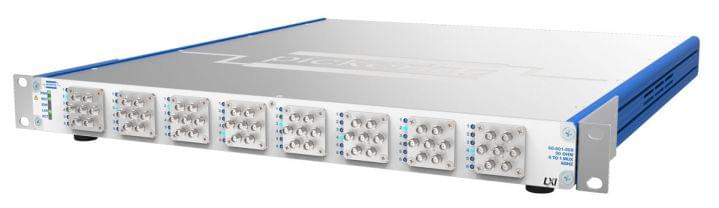

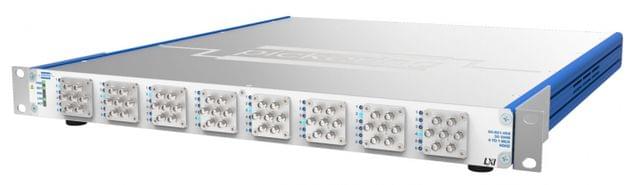

LXI Microwave Multiplexer, 50Ohm 6-Channel 4-Bank 40GHz SMA-2.9 - 60-801-404

The 60-801-404 is a 6-channel, 4-bank RF multiplexer suitable for switching 50? signals up to 40GHz. It is part of Pickering Interfaces range of LXI Microwave Multiplexers which are available with bandwidths between 6GHz and 40GHz and support for 4, 8 12 or 16 banks of 4 or 6-channel multiplexers. It is ideal for constructing complex microwave switching systems for many applications. Connection is by high performance front panel mounted SMA or SMA-2.9 connectors. The 60-801 occupies just 1U (4 & 8 channel versions) or 2U (12 & 16 channel versions) of valuable rack space, providing a space saving solution for systems requiring high performance multiplexers in the construction of microwave switching systems.

Features
  • High Performance 6-Channel RF Multiplexer
  • 50 Ohm Characteristic Impedance
  • 6GHz, 18GHz, 26.5GHz and 40GHz Bandwidths
  • 4, 8, 12 or 16 Multiplexer Banks
  • Excellent RF & Repeatability Characteristics
  • Extended Life For 6GHz/18GHz/26.5GHz Models - 10M Operations Guaranteed & Typically >25M!
  • LED Indication
  • Compact 1U or 2U Form Factor
  • LXI Standard 1.5 Compliant
  • IVI & Direct I/O Drivers
Type Microwave Multiplexer
Platform LXI
Function Mux
Z (Ohm) 50
Banks 4
Max f (MHz) 40GHz
Channels 6
Brand Pickering Interfaces
