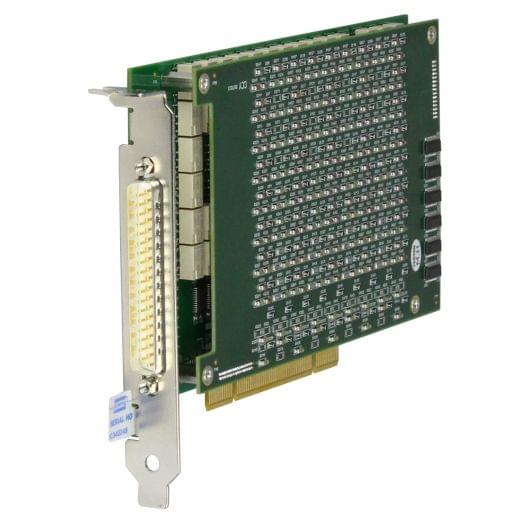

9Ch,1Ohm to 31.5Ohm PCI Precision Resistor Card, 50-297-110
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 50-297 provides a simple solution for applications requiring accurate simulation of resistive sensors. The 50-297 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature. The associated calibration cable for this product is available for purchase as 40-975-037-1m
Type | Standard Resistor |
Platform | PCI |
Resistance Range | 1Ohm to 31.5Ohm |
Accuracy (%) | 0.2 |
Resolution (Ohm) | 0.125 |
Channels | 9 |
Brand | Pickering Interfaces |
