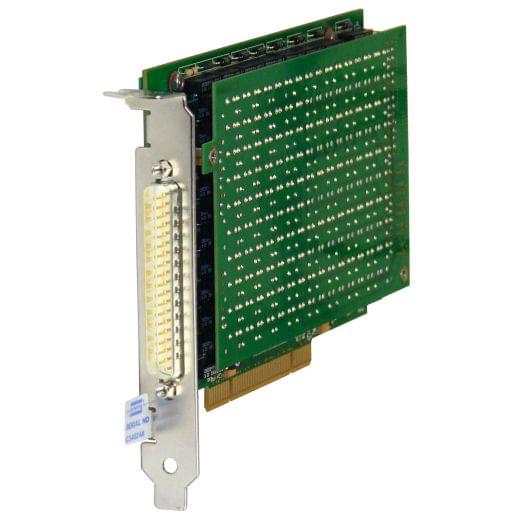

9Ch,3Ohm to 26.7kOhm PCI High Density Pecision Resistor Card, 50-298-032
VARIANT | SELLER | PRICE | QUANTITY |
---|
The 50-298-032 is a high density programmable resistor card with 9 channels which can be set between 3? and 26.7k? with 0.5? resolution The 50-298 range provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-298 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature.
Type | Standard Resistor |
Platform | PCI |
Resistance Range | 3Ohm to 26.7kOhm |
Accuracy (%) | 0.2 |
Resolution (Ohm) | 0.5 |
Channels | 9 |
Brand | Pickering Interfaces |
