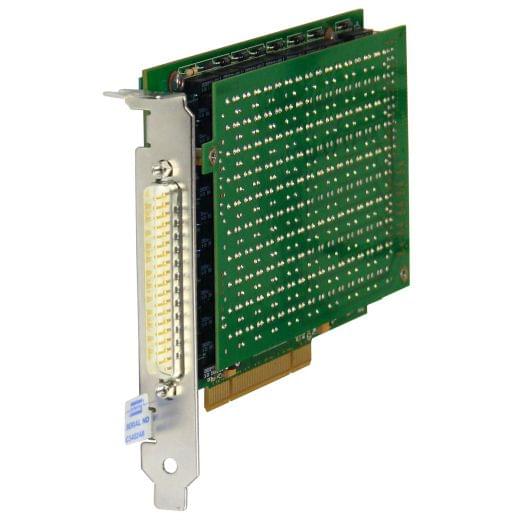

PCI High Density Pecision Resistor Card, 9-Channel, 3Ohm to 52.4kOhm,50-298-033

The 50-298-033 is a high density programmable resistor card with 9 channels which can be set between 3? and 52.4k? with 1? resolution The 50-298 range provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-298 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature.

Features

High Density Resistor Simulation
Fitted With Pickering Reed Relays, Providing Superior Speed of Operation & Card Life
Up To 18 Channels ion a Single Card
Resistance Resolution to 0.125 Ohm
Values From 2 Ohm to 22M Ohm
Accuracy of �0.2% �Resolution
Short and Open Simulation
Simple Software Control Through Resistance Calls
