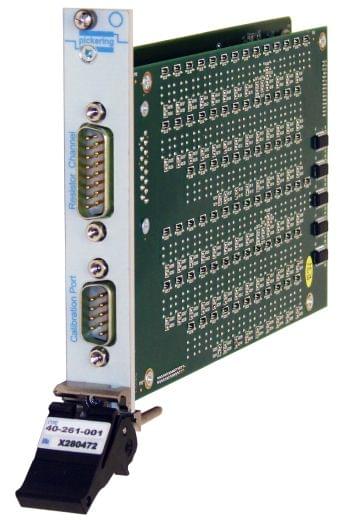

PXI programmable resistors featuring fine resistance setting resolution and excellent resistance stability and accuracy through the use of advanced switching networks and software correction techniques. The two modules in this range support two identical resistor channels t that can be set to values of between 1.5Ohm to 2.9kOhm or 10Ohm to 36kOhm with a precision of better than 2mOhm (this version) or 15mOhm (40-261-002) making them ideal for simulating sensors that can be accurately controlled to fine values. Thanks to the use of innovative technology the 40-261 range ensures all resistance values can be set no missing values because of switch resistance or resistor tolerance. Applications include air bag squib, strain gauge and temperature dependent resistor emulation.

Features
  • Precision Variable Resistance From 1.5 Ohms
  • Two Channels per Module
  • Fine Setting Resolution <2mOhm or 15mOhm
  • Short and Open Circuit Simulation
  • Low Thermo-electric EMF Errors
  • Simple Calibration With External DMM
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Precision Resistors
Platform PXI
Accuracy (%) 0.08
Resolution (Ohm) 0.002
Channels 2
Power Rating 100mW
Resistance Range 1.5Ohm to 2.9kOhm
Brand Pickering Interfaces
