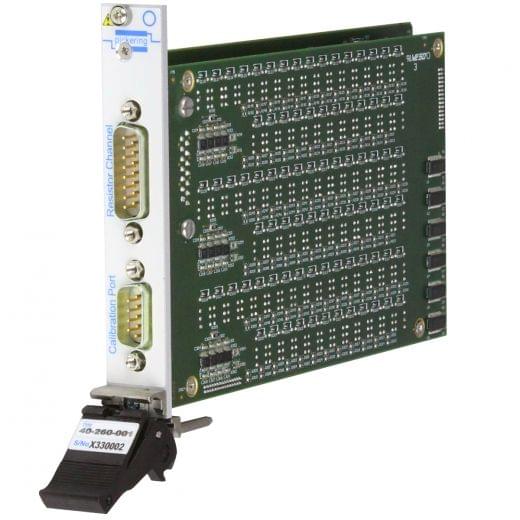

3-Ch,90Ohm to 8kOhm,100mW,PXI Resistor Module,40-260-001

The 40-260 PXI precision programmable resistor modules feature high resistance setting resolution with excellent resistance stability and accuracy through the use of advanced switching networks and software correction techniques. Each module supports three identical resistor channels that can be set to a range of resistance values with a setting resolution of better than 10mOhm, making this resistor module ideal for simulating sensors that require fine adjustment of their resistance. Thanks to the use of innovative technology the 40-260 ensures all resistance values can be set, no missing values because of switch resistance or resistor tolerance. Additionally, each channel can be set as open or short circuit to simulate faults in cabling systems. Applications include strain gauge and temperature dependent resistor emulation.

  • Precision Variable Resistance From 90Ohm to 8kOhm
  • 3 Channels per Module
  • Very High Accuracy and Stability
  • Controlled by Simple Resistor Value Calls
  • Fine Setting Resolution <10mOhm
  • Short and Open Circuit Simulation
  • Low Thermo-Electric EMF
  • Simple Calibration With External DMM
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Precision Resistors
Platform PXI
Accuracy (%) 0.1
Resolution (Ohm) 0.01
Channels 3
Power Rating 100mW
Resistance Range 90Ohm to 8kOhm
Brand Pickering Interfaces
