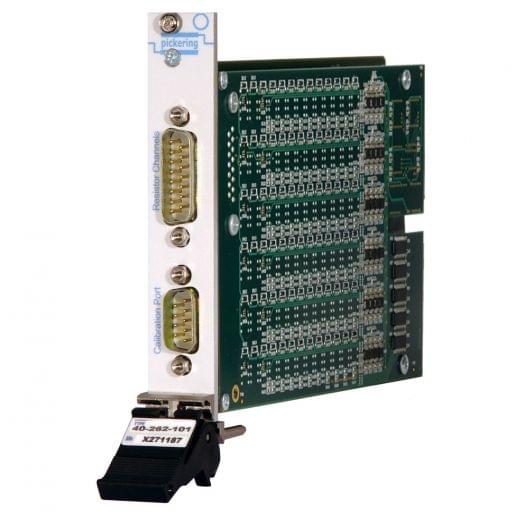

The 40-262 is a 3U PXI module range that supports 6 (in one slot), 12 or 18 (in two slots) channels of RTD simulation. Based on the 40-260 design principles the module can provide a setting resolution of <8mOhm (PT100) or <90mOhm (PT1000) and a resistance accuracy of better than 0.1% on all channels. Each simulation channel is able to provide a short or open circuit setting to simulate faulty wiring connections to a sensor. Calibration or verification of each resistor channel can be verified by using the calibration port connected to a high performance DMM and a supplied software package. Each module can be specified with a resistance range of either 90Ohm to 250Ohm suitable for PT100 simulation (40-262-001/201/101), or 900Ohm to 2500Ohm suitable for PT1000 simulation (40-262-002/202/102). Both resistance ranges are suitable for simulating a temperature range of approximately -25 C to 410 C for their given sensor type. The use of resistance value calls makes programming simple, an API to convert temperature requests to resistance calls using a model of the sensor being used is also available. Each channel can operate with a differential input voltage range of greater than +or-15V relative to a defined common mode voltage. The common mode voltage can be set to 0V, (input range of at least +or-15V), +12V (input range of -3V to +27V), -12V (input range of -27V to +3V) or an external comm>

Features
  • Up To 18 Channels of Accurate RTD Simulation
  • PT100 or PT1000 Versions
  • Simple Control By Resistance Calls
  • High Accuracy and Fine Resistance Control
  • Short and Open Circuit Simulation
  • Simple Calibration With External DMM
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type PT1000 RTD Simulator
Platform PXI
Accuracy (%) 0.1
Resolution (Ohm) 0.09
Channels 6
Power Rating 100mW
Resistance Range 900Ohm to 2.5kOhm
Brand Pickering Interfaces
