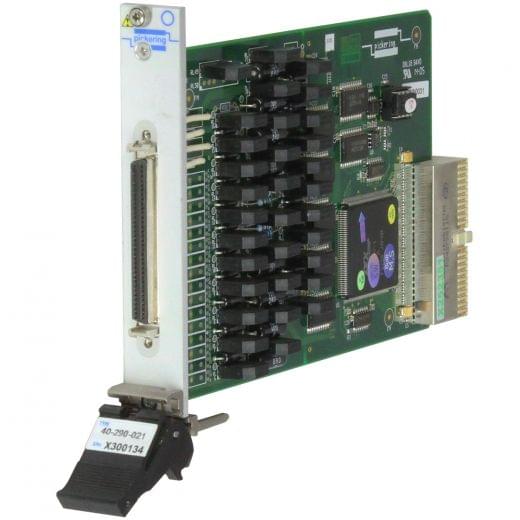

Dual-Resistor,0Ohm to 32.7kOhm,1W,PXI Resistor Module,40-290-021

The 40-290 Series Programmable Resistor Modules comprise a Dual 16-bit or Quad 8-bit resistor chain together with 16 optional SPDT Reed Relays. Connections are made via a front panel SCSI 2 type 68 pin male connector. Programmable resistors may be connected together either in series or in parallel to form many types of configuration.

Features
  • Dual 16-Bit or Quad 8-Bit Resolution Resistor Module
  • Programmable from 0.5 Ohm to 32767.5 Ohm in 0.5 Ohm Steps
  • Built-In Non-Volatile Parametric Memory For Calibration Data
  • Option To Include 16 SPDT Reed Relays
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Over 1000 Value Changes Per Second
  • Special Versions Built To Order
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Standard Resistor
Platform PXI
Accuracy (%) 0.5
Resolution (Ohm) 0.5
Channels 2
Power Rating 1W
Resistance Range 0Ohm to 32.7kOhm
Brand Pickering Interfaces
