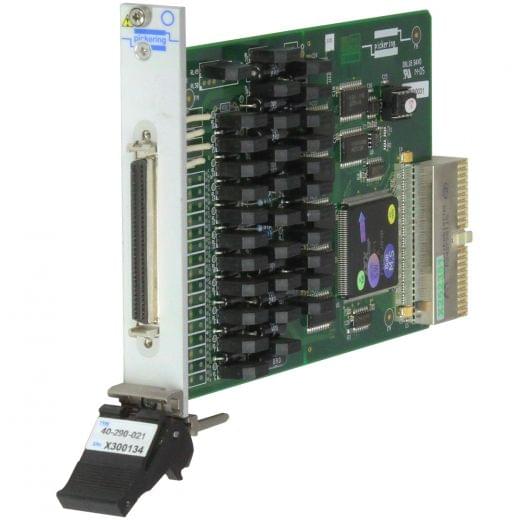

4-Ch,0Ohm to 127.5Ohm,0.25-1W,PXI Resistor Module,40-291-021

The 40-290 Series Programmable Resistor Modules comprise a Dual 16-bit or Quad 8-bit resistor chain together with 16 optional SPDT Reed Relays. Connections are made via a front panel SCSI 2 type 68 pin male connector. Programmable resistors may be connected together either in series or in parallel to form many types of configuration. Special versions may be built to order, contact the factory for specific details

Features
  • Dual 16-Bit or Quad 8-Bit Resolution Resistor Module
  • Programmable from 0.5 Ohm to 32767.5 Ohm in 0.5 Ohm Steps
  • Built-In Non-Volatile Parametric Memory For Calibration Data
  • Option To Include 16 SPDT Reed Relays
  • Uses High Reliability Pickering Reed Relays For Maximum Performance
  • Over 1000 Value Changes Per Second
  • Special Versions Built To Order
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Standard Resistor
Platform PXI
Accuracy (%) 0.5
Resolution (Ohm) 0.5
Channels 4
Power Rating 0.25-1W
Resistance Range 0Ohm to 127.5Ohm
Brand Pickering Interfaces
