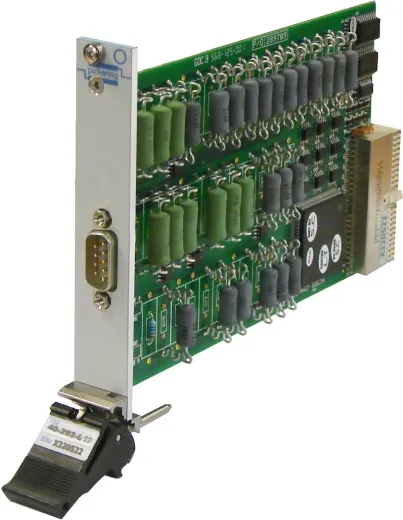

1-Ch,40Ohm to 295Ohm,15W,PXI Load Resistor,40-292-011

The 40-292 provides a simple solution for applications requiring a programmable load resistor with up to 15W power handling. It is able to simulate the common short circuit and open circuit conditions that can be experienced in a system due to faulty wiring or sensors.

  • Up To 15 Watt Resistor Load
  • Short and Open Circuit Simulation
  • Solid State Switching For Long Service Life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Load Resistors
Platform PXI
Accuracy (%) 5
Resolution (Ohm) 1
Channels 1
Power Rating 15W
Resistance Range 40Ohm to 295Ohm
Brand Pickering Interfaces
