2-Ch,1.5Ohm to 2.04kOhm,0.5W,PXI Resistor Module,40-293-022
VARIANT | SELLER | PRICE | QUANTITY |
---|

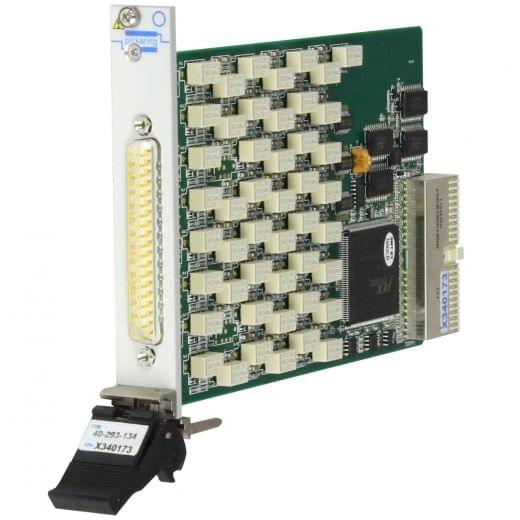

The 40-293 is a Programmable Resistor module with two channels of 16-bit, two channels of 12-bit or four channels of 8-bit resistor chains in a single 3U PXI module. The module is ideal for simulating sensors for control and management systems under test, allowing the user to verify system response in design verification or manufacturing test applications. The 40-293 can also be supplied with 8xSPDT electro-mechanical relays. These uncommitted relays have a number of uses, including extending the resistor chain, adding additional fault conditions and providing the functionally of a resistor module and an uncommitted relay module in a single PXIslot. The associated calibration cable for this product is available for purchase as 40-975-037-02-1m
Type | Standard Resistor |
Platform | PXI |
Accuracy (%) | 1 |
Resolution (Ohm) | 0.5 |
Channels | 2 |
Power Rating | 0.5W |
Resistance Range | 1.5Ohm to 2.04kOhm |
Brand | Pickering Interfaces |
