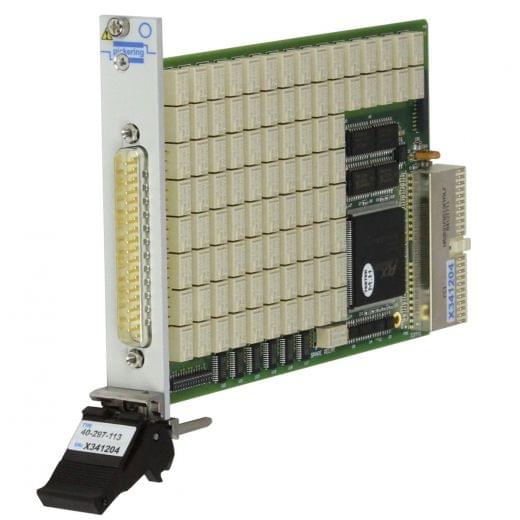

9-Ch,1Ohm to 62.1Ohm,0.5W,PXI Precision Resistor Module,40-297-111
VARIANT | SELLER | PRICE | QUANTITY |
---|
This PXI Precision Resistor Module provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-297 series is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature. The associated calibration cable for this product is available for purchase as 40-975-037-1m
Type | Precision Resistors |
Platform | PXI |
Accuracy (%) | 0.2 |
Resolution (Ohm) | 0.25 |
Channels | 9 |
Power Rating | 0.5W |
Resistance Range | 1Ohm to 62.1Ohm |
Brand | Pickering Interfaces |
