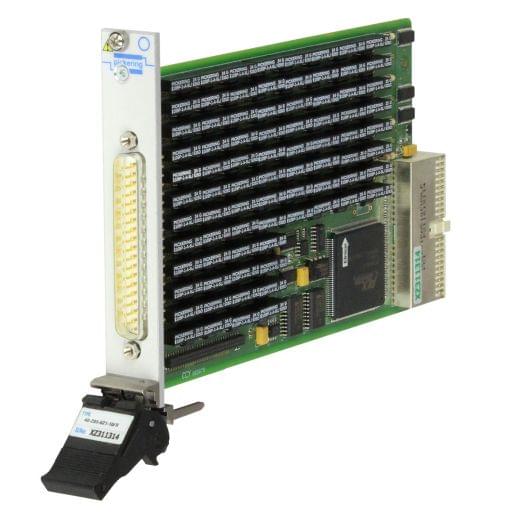

3-Ch,4Ohm to 22.3MOhm,0.5W,PXI Precision Resistor Module,40-298-154

The 40-298 range provides a simple solution for applications requiring accurate simulation of resistive sensors. The 40-298 is available in a variety of resistance ranges and resolution capabilities that meet the needs of most functional test systems. It is particularly well suited to applications such as the testing of engine controllers where resistive sensors provide information on parameters such as temperature. The associated calibration cable for this product is available for purchase as 40-975-037-1m

Features
  • High Density Resistor Simulation
  • Fitted With Pickering Reed Relays, Providing Superior Speed of Operation & Module Life
  • Up To 18 Channels in a 1-Slot Module
  • Resistance Resolution to 0.125 Ohm
  • Values From 2 Ohm to 22M Ohm
  • Accuracy of �0.2% �Resolution
  • Short and Open Simulation
  • Simple Software Control Through Resistance Calls
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Type Precision Resistors
Platform PXI
Accuracy (%) 0.2
Resolution (Ohm) 2
Channels 3
Power Rating 0.5W
Resistance Range 4Ohm to 22.3MOhm
Brand Pickering Interfaces
