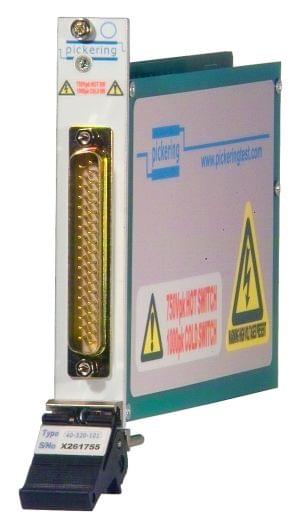

PXI 12 Channel High Voltage Multiplexer - 40-320-001

The 40-310/320 Range of High Voltage Switching Modules will hot switch up to 750V peak and cold switch up to 1000V peak in either general purpose relay (40-310) or multiplexer (40-320) configurations. These modules contain high-quality reed relays with switching ratings comfortably higher than the 40-310/320 specification. Applications for the 40-310/320 series modules include; circuit board isolation testing, relay testing, semiconductor breakdown monitoring and cable harness insulation testing.

Features
  • Industry's Highest Voltage PXI Switch Modules
  • Model 40-310 - 8 or 16 x High Voltage SPST Reed Relays
  • Model 40-320 - 12 or 24 Channel High Voltage Multiplexer
  • Hot Switch up to 750VDC or 750VAC peak, 10W Max Power
  • Cold Switch Up To 750VDC or 750VAC peak Working Voltage (1000VDC/1000VAC peak Typical)
  • Dry Reed Switch Contacts With RFI Suppression for Long Life
  • Operating Speed <0.5ms
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type Reed
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 750
Channels 12
Brand Pickering Interfaces
