PXI Octal 3:1 High Voltage Power MUX

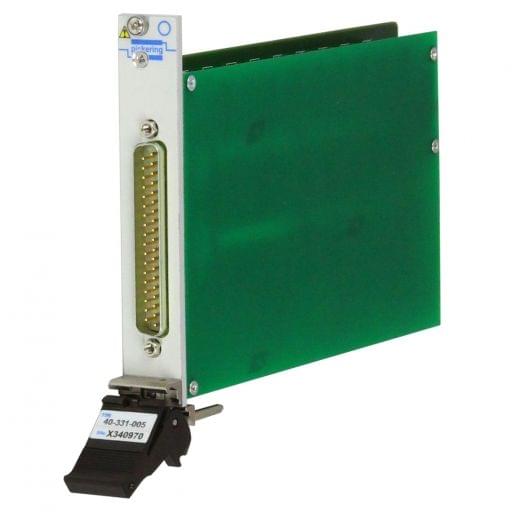

The Pickering Interfaces 40-331/332 High Voltage Power Multiplexer and Matrix Modules are suitable for applications requiring high voltage power relay switching with high density. They feature current handling up to 5A, 1000VDC/1000VAC peak cold switching and 110VDC/250VAC hot switching.

The 40-331 is available as a single 24:1, dual 12:1, quad 6:1, hex 4:1, octal 3:1 or twelve 2:1 multiplexer, and the 40-332 is available in 12x2 or 6x4 matrix configurations. Connections are made via a front panel mounted 37 pin high voltage D-Type connector.

Features
  • Multiplexer With Single 24 to 1, Dual 12 to 1, Quad 6 to 1, Hex 4 to 1, Octal 3 to 1 or Twelve 2 to 1 Formats
  • Matrix With 12x2 or 6x4 Configurations
  • Cold Switch up to 750VDC/750VAC peak Working Voltage (1000VDC/1000VAC peak Typical)
  • Hot Switch up to 110VDC/250VAC
  • 5A Hot Switch Current
  • Maximum Power 150W/1250VA
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI Chassis
Platform PXI
Switch Type EMR
Banks 8
Poles 1
Max I (A) 5
Max V DC 750
Channels 3
Brand Pickering Interfaces
