12x2 PXIHighVoltagePowerMatrix,40-332-001

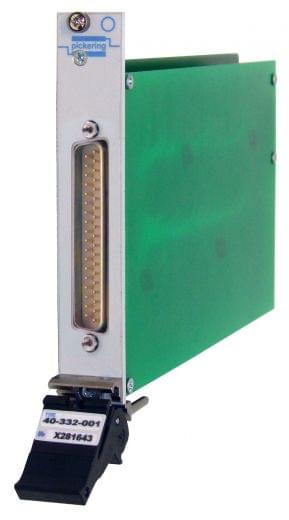

Designed for applications requiring high voltage power relay switching with high density. They feature current handling up to 5A, 1000VDC/1000VAC peak cold switching and 110VDC/250VAC hot switching. This range is available in 12x2 or 6x4 (shown here) matrix configurations. Connections are made via a front panel mounted 37 pin high voltage D-Type connector.

  • Matrix with 12x2 or 6x4 configurations
  • Cold switch up to 750VDC/750VAC peak working voltage (1000VDC/1000VAC peak typical)
  • Hot switch up to 110VDC/250VAC
  • 5A hot switch current
  • Maximum power 150W/1250VA
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
Platform PXI
Switch Type EMR
X Size 12
Y Size 2
Banks 1
Poles 1
Max I (A) 5
Max V DC 750
Brand Pickering Interfaces
