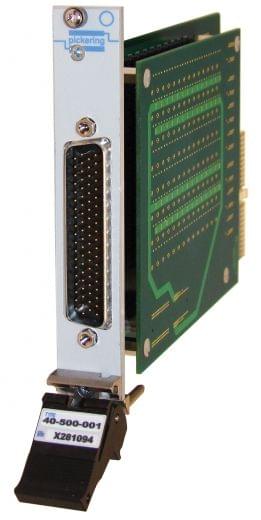

64x4,0.5Amp,60v,1-Pole, PXI Solid State Very High Density Matrix,40-500-001

A very high density matrix using solid state switching configured as a 64x4 1-pole matrix in a single slot 3U PXI module. It is ideal for applications requiring fast operation and a long service life with frequent switch operations at high currents and voltages. Since the design is based on solid state relays the matrix has no wear out mechanism.

Features
  • 0.5A hot or cold switching
  • 1.5A crosspoint inrush current
  • 60 volt rating
  • 3A Y Bus Rating
  • Fast switch operation and long service life
  • VISA, IVI and Kernel Drivers Supplied for Windows
  • Supported by PXI or LXI chassis
  • Supported by eBIRST Switching System Test Tools
Platform PXI
Switch Type Solid State
X Size 64
Y Size 4
Banks 1
Poles 1
Max I (A) 0.5
Max V DC 60
Brand Pickering Interfaces
